E-Panel - Schneider Electric XW
MNESMAXW-SHORT BP
|
Model
|
Size
|
Weight
|
|
MNESMAXW-SHORT BP
|
50.42"L x 22.88"W x 1.5"D
|
26 lbs
|
|
Model
|
MNESMAXW-SHORT BP
|
|
Size
|
50.42"L x 22.88"W x 1.5"D
|
|
Weight
|
26 lbs
|
DESCRIPTION:

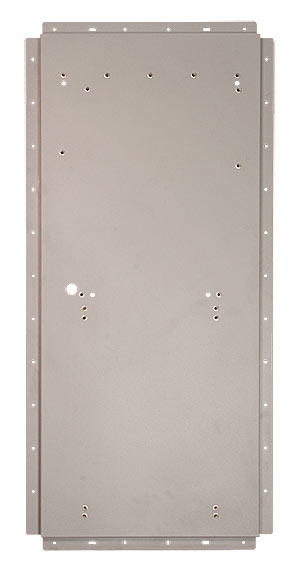

SMA and XW short back plate for inverter and E-Panel.
NOTE: A back plate (MNESMA-Short BP) is recommended for all systems using SMA inverters and NO Auto Transformer so the SMA E-Panels will have proper wiring alignment to the Sunny Island.
NOTE: A back plate (MNESMA-Short BP) is recommended for all systems using SMA inverters and NO Auto Transformer so the SMA E-Panels will have proper wiring alignment to the Sunny Island.
ACCESSORIES
MNE250SMA-3PH MASTER
The MNE250SMA-3PH Master E-Panel works with 2 of the MNE250SMA-Slave E-Panels to create a 3 phase system.
The MNE250SMA-3PH Master E-Panel works with 2 of the MNE250SMA-Slave E-Panels to create a 3 phase system.
MNE250SMA-QUAD MSTR
The MNE250SMA-Quad Mstr This E-Panel works with 3 of the MNE250SMA-Slave E-Panels to create a Quad stack of Sunny Islands.
The MNE250SMA-Quad Mstr This E-Panel works with 3 of the MNE250SMA-Slave E-Panels to create a Quad stack of Sunny Islands.
MNE250SMA-OG/AC DM
The MNE250SMA-OG/AC DM The Dual Master E-Panel works with 1 of the MNE250SMA-Slave E-Panel’s to create a 120/240 VAC AC coupled or Off Grid system.
The MNE250SMA-OG/AC DM The Dual Master E-Panel works with 1 of the MNE250SMA-Slave E-Panel’s to create a 120/240 VAC AC coupled or Off Grid system.
MNE250SMA-OG SINGLE
The MNE250SMA-OG-SINGLE The Off Grid Single is designed for a single Sunny Island off grid system.
The MNE250SMA-OG-SINGLE The Off Grid Single is designed for a single Sunny Island off grid system.
