MN3024DIY
UNAVAILABLE
Model
Size
Shipping
Weight
MN3024DIY
14.90"L x 11.03"W x 4.06"D
17.4"L x 14"W x 7"D
17 lbs
Model
MN3024DIY
Size
14.90"L x 11.03"W x 4.06"D
Shipping
17.4"L x 14"W x 7"D
Weight
17 lbs
DESCRIPTION:

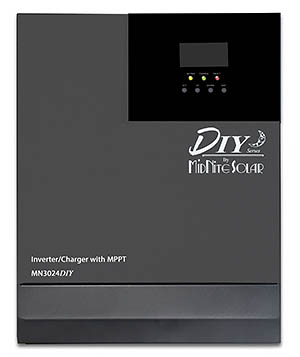

The MN3024DIY is a 3,000W, 24VDC inverter-charger that includes a built-in MPPT charge controller.
Offering a simple, all-in-one installation and flexible programming, the new MidNite Solar Inverter/charger DIY Series will charge virtually any battery chemistry. Boasting a 3,000 watt continuous output, unlike many of its competitors. With excellent surge capability, the DIY Series will start the most demanding 120VAC loads. Perfect for your off-grid cabin or house, the DIY Series is designed to be affordable, dependable, and supported by the industry’s best customer service personnel at MidNite Solar. Manufactured for MidNite Solar in China.

SPECIFICATIONS
  • MAX Absorb and EQ Voltage 31.6v
  • System Voltage: 24VDC
  • Max Rated Power: 3000W Continuous
  • Surge Power: 6000W
  • Power Factor: 1
  • Input Voltage: 120VAC
  • Input Voltage Range: 90-140VAC +- 2% Adjustable
  • Input/Output Frequency: 60Hz
  • Output Voltage: 120VAC +- 5%
  • Output Waveform: Pure Sine Wave
  • Peak Efficiency: >95%
  • Max AC Charging Current: 40A
  • Internal Bypass Current: Up to 40A
  • Conversion (Bypass and Invert): 10ms
  • Max PV Input Power: 1400W
  • Max PV Charging Current: 60A
  • Max PV Input Voltage: 100V
  • Algorithm: MPPT
  • MPPT Voltage Range: 30 - 90V
  • Battery Type: Lead Acid or Lithium
  • Battery Voltage Range: 20 - 33V DC
  • Max AC Battery Charging Current: 40A
  • Max Total (PV and AC combined) Battery Charging Current: 80A
  • Nominal Battery Voltage: 24V
  • Operating Temperature: -15C ~ 55C
  • Storage Temperature: -25C ~ 60C
  • Humidity: 5% ~ 95% (3 Layer Paint Protection)
  • Warranty: 1 Year
ACCESSORIES
MNDIYWIFI
