Breakers

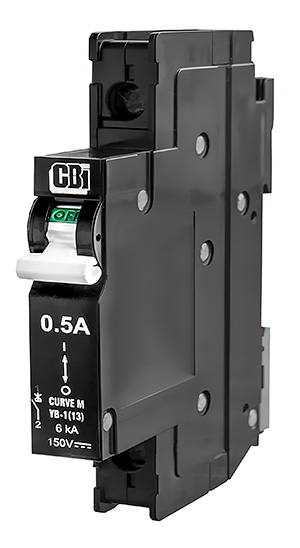

MNEPVxx-150-1PNP
NON Polarized
|
Model
|
|
MNEPVxx-150-1PNP
|
|
Model
|
MNEPVxx-150-1PNP
|
DESCRIPTION:
Always in stock!
Note: Branch circuit rated 489A
MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.
All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure. Breaker Torque Value: 20 In-Lbs (2.3NM)
MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.
- NON POLARIZED
- Environmental Rating - Type 1 (Indoor)
- DC Voltage Rating - 150VDC
- Wire Size Range - 14 to 6 AWG
- Width - 0.5 inches (13mm)
- Number of poles - 1
- Listed for US & Canada
- 10,000 AIC
All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure. Breaker Torque Value: 20 In-Lbs (2.3NM)
