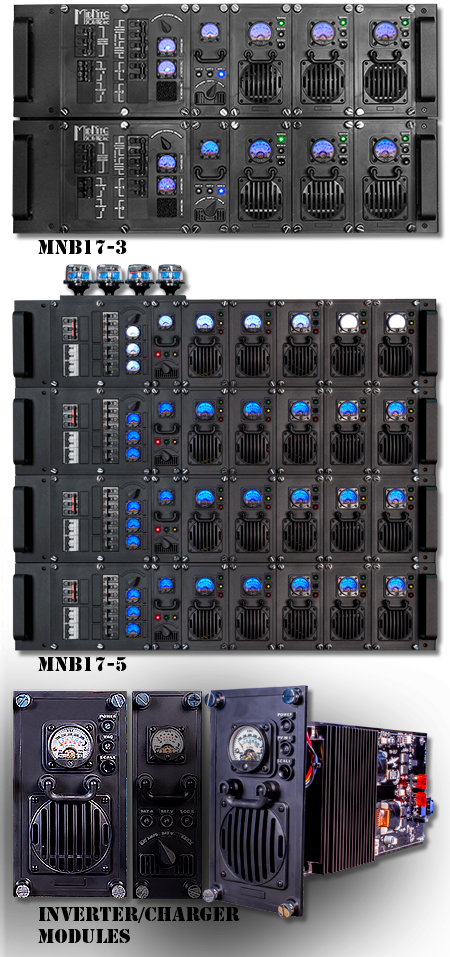

MidNite inverter systems are a game changing innovation that will revolutionize system design and installation. The MNB17 is the most advanced battery based inverter/charger system ever devised and with eight patents pending, MidNite is the only manufacturer of a system like this. Our inverter/charger and MPPT solar and wind modules are hot swappable and available in various voltage configurations.

• Up to five 2kW inverter/charger modules, up to two 5000 and 8000 watt MPPT modules depending on model.
• Five bays to suit your needs
• Redundant power modules do not take the system down if one fails
• Built in E-Panel
• Two 600V/100A breakered PV inputs, two breakered 80 amp 120/240VAC inputs
• Breakered 80 amp 120/240VAC AC Bypass
• 250 amp battery breaker (48V battery)
• Battery types supported: Flooded, Gel, AGM, Nickel-Iron, Lithium, NiCad
• Built in Ethernet
• Optional communications module to talk to most MidNite products
• Built in state of charge meter with Whizbang Jr.
• Built in LEDs in the wiring compartment provide lighting for installation
• Talking graphics panel
• Battery monitoring system provides visual and audible battery condition alerts
• System will speak English, Spanish and French
• SPD lightning arrestors included in the MNB17-5
• Aux inputs and outputs with remote battery voltage and temp sensing
• Off-grid, battery backup grid tie, self-consumption all in one unit
• Nine meters all with dual scales eliminate the need to hunt for a voltmeter
• Three phase system for International and commercial applications
