Model
|
Price |
Size |
Shipping |
Weight |
|
MNSOB4X-2P
|
$610.00 |
16.8"L x 12.4"W x 5.6"D INCLUDING HANDLE |
21"L x 17"W x 6"D |
14 Lbs |
|
MODEL OPTIONS
|
Model
|
Price |
Size |
Shipping |
Weight |
|
MNSOB4X-2P-PSB
|
$743.00
|
|
|
|
|
Available with Power Supply board factory installed for Plug and Play compatibility with the MidNite Solar Birdhouse Rapid System Shut Down Controller.
|
|
|
|
The MNSOB4X-2P's red handle is LOCKABLE IN THE OFF POSITION!
FEATURES:
- Disconnect has built in shunt trip with positive feedback
- Birdhouse compatible
- Optional PV connected power supply
- See thru deadfront
- Type 4X aluminum enclosure (no rust, will not turn to dust)
- Load Break Rated
- Customer connections are #10 wire max
- 90o C connections
- Meets NEC 2011 and 2014 NEC 690.12
- Warranty - 5 yrs.
- Listed by ETL for US & Canada
- Made in the USA
Hardware Included
California Residents: Warning
|
|
Description:
|

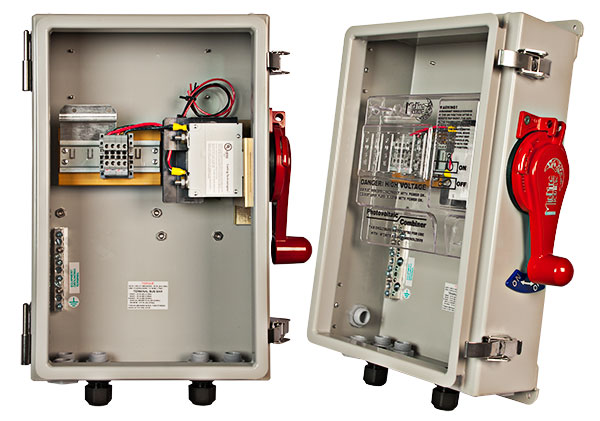

MNSOB4X-2P is a Disconnect switch. It has a 2 channel switch that breaks both the positive and negative of a PV string to a Transformer-less inverter. It has a combined rating of 600v and 20 amps as shipped. The switch is good for 100amps but the wire and terminal blocks limit it to 20 amps.
|
|
|
Recommended Accessories
|
|
MNDISCOPSB - $125.00
Power Supply Board for Disco Combiners in connection to the Birdhouse.
|
|
