MNPV8HV-DISCO 3R
Model
Price
Size
Shipping
Weight
MNPV8HV-DISCO 3R
$1169.00
18.5"L x 14"W x 4.6"D INCLUDING HANDLE
24"L x 19"W x 6"D
16 lbs
Model
MNPV8HV-DISCO 3R
Price
$1169.00
Size
18.5"L x 14"W x 4.6"D INCLUDING HANDLE
Shipping
24"L x 19"W x 6"D
Weight
16 lbs
Model Options
Model
Price
Size
Shipping
Weight
Description
MNPV8HV-DISCO 3R-20
$1169.00
18.5"L x 14"W x 4.6"D INCLUDING HANDLE
24"L x 19"W x 6"D
16 Lbs.
Same combiner only with 20 amp fuses.
Model Options
Model
MNPV8HV-DISCO 3R-20
Price
$1169.00
Size
18.5"L x 14"W x 4.6"D INCLUDING HANDLE
Shipping
24"L x 19"W x 6"D
Weight
16 Lbs.
Description
Same combiner only with 20 amp fuses.
DESCRIPTION:

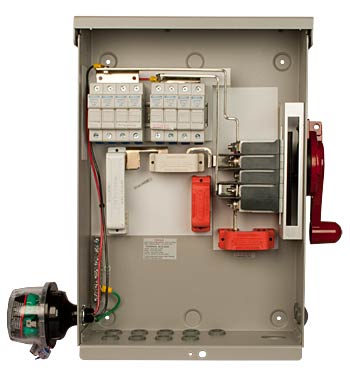

MNPV8HV-DISCO 3R PV Disconnecting Combiner, 5 poles, 80 or 160 amp busbars depending on how they are configured. Switch is a 100 amp load break rated or 175 amps load break rated depending on configuration, 600 volt max.
The MNPV8HV-DISCO 3R's red handle is LOCKABLE IN THE OFF POSITION!
  • Convertible configuration (field configurable)
  • Eight strings combined for up to 160 Amps single 230 Amp/600V single pole disconnect)
  • 4 + 4 positive strings, separate PV+ and PV- for use with 2 inverters (2 pole 115 Amp disconnect)
  • Four strings positive, four strings minus for use with non-isolated inverters (2 pole 115 Amp disconnect)
  • Load Break Rated
  • Type 3R aluminum enclosure (no rust, won't turn to dust)
  • 90o C connections
  • See thru deadfront & color coded busbar guards included
  • Fuseholders (MNTS) installed
  • 15a/600v fuses installed
  • 600 volt max
  • Warranty - 5 yrs.
  • Listed by ETL for US
  • Made in the USA
Hardware Includes:
  • One MNSPD-600 (Surge Protection Device)
  • Eight 1/2" strain reliefs (MNSR-1000)
  • Eight 1/2" LOCKNUTS
  • One 10-32 X 7/8" BOLT
  • Two 10-32 X 3/8" FHP
  • Six 10-32 KEPS NUT
  • One TERMINAL PIN 18-22 AWG.
  • One TERMINAL PIN 10-12 AWG.
  • Two RING TERMINAL 10-12 AWG.
  • One BUSBAR, NEGATIVE OUT 2
  • One BUSBAR, POSITIVE OUT 2
  • One BLUE WRENCH
The difference between the regular Disco combiner and the DLTL version is that the MNPV8HV-Disco-4X is made for a single 8 string inverter, 2 4 sting inverters or one 4 string transformerless where as the DLTL is set up for 4 strings in and 2 strings out for Dual MPPT on transformerless

MNPV8HV Assembly Instructions

Two Inverter Conversion
NON-Isolated Conversion
Parallel Conversion
Read PDF on the Discos - 11 MB

California Residents: Warning

ACCESSORIES
MNCAT5-600 - $2.25 per ft.
Cat-5 cable to connect disconnecting combiners and arc fault combiners to the Birdhouse.

MNCAT5-600-FULLROLL - $2285.00
Cat-5 cable to connect disconnecting combiners and arc fault combiners to the Birdhouse in a 1600ft roll.

MNTS-12PK - $84.00
MNTS - Mersen Touch Safe Fuse Holder for10x38 mm fuses 1000VDC 30 amp Din rail mount Use in the MNPV combiners for high voltage string inverters. MNTS-12PK

MN600FUSE - $3.75
Goes with MNTS fuse holder. The fuses are industry standard 10mm x 38mm fuses.
